Integrate Red Hat Quay

Secure your containerized applications by monitoring Red Hat Quay for exposed secrets in container images.

tip

Red Hat Quay supports both SaaS (quay.io) and self-hosted deployments. This integration works with both variants.

Why Monitor Red Hat Quay?

Red Hat Quay serves as an enterprise-grade, OCI-compliant container image registry for your organization's production-ready container images. These images often contain production database credentials, enterprise API keys, and internal service tokens that, when exposed, can compromise critical business applications and provide unauthorized access to proprietary systems and sensitive customer data.

Capabilities

Feature	Support	Details
Historical Scanning	✅ (Supported)	Analyze existing images and their layers
Incremental Scanning	✅ (Supported)	Regular scheduled scanning for new content
Monitored Perimeter	✅ (Supported)	Granular monitoring of your repositories
Team Perimeter	✅ (Supported)	Team-based access control
Presence Check	❌ (Not Supported)	All occurrences considered present
Source Visibility	❌ (Not Supported)	All sources are considered as private
File Attachments	N/A	Not applicable for container registries

What we scan:

• All container image layers
• Dockerfiles and build configurations
• Environment variables in image metadata

info

This integration automatically scans your monitored repositories, downloading container images which may incur bandwidth costs. To optimize costs and reduce false positives, carefully select the sources to monitor and use our filepath exclusion feature.

info

Plan requirements: Available for GitGuardian Enterprise plan. Try it for free with a 30-day trial - any detected incidents remain accessible after the trial ends.
Detector coverage: To minimize false positives, Generic High Entropy Secret and Generic Password are disabled. All other detectors are enabled.

Understanding scanning capabilities

Historical scanning

Uncover your secret debt: When you first integrate this source, GitGuardian performs a comprehensive scan of your entire content history, based on your customized perimeter. This reveals secrets that may have been exposed weeks, months, or even years ago - helping you address your existing security debt.

How to trigger a historical scan: Go to your perimeter page, select the sources you want to scan, and click Scan in the bulk actions bar. See Manage your monitored perimeter for plan-based size limits, error handling, and full details.

Incremental scanning

Stay protected with regular monitoring: Once integrated, GitGuardian provides ongoing protection through scheduled automated scans of your content. New and modified content is systematically monitored at regular intervals, ensuring comprehensive coverage and timely detection of any secret exposures. Your source remains under GitGuardian's protection, giving you confidence that secrets won't go unnoticed.

Setup your Red Hat Quay integration

Prerequisites:

• Owner or Manager account on your GitGuardian Dashboard
• Admin permissions on a Red Hat Quay organization to create an OAuth Application
  • Network connectivity between GitGuardian and your self-hosted services. Check out GitGuardian Bridge to enable secure connections between GitGuardian SaaS and your self-hosted services in private networks.

GitGuardian integrates with Red Hat Quay via OAuth2 with read-only access to your repositories.

Each installation covers one Red Hat Quay instance, such as quay.io or your self-hosted Quay. GitGuardian monitors the organizations that the account authorizing it can see:

• Global read-only superuser (GLOBAL_READONLY_SUPER_USERS or LDAP_GLOBAL_READONLY_SUPERUSER_FILTER in the Quay config, Quay 3.13 or later): every organization of the instance
• Any other account, including a regular superuser: the organizations it is a team member of. GitGuardian also falls back to these when the superuser API is turned off, which is always the case on quay.io.

warning

A regular superuser (SUPER_USERS or LDAP_SUPERUSER_FILTER) does not give GitGuardian access to the whole instance. Quay grants superuser rights to an OAuth token only with the super:user scope, which GitGuardian does not request because it gives administration rights on the whole instance. Without it, Quay limits the token to the account's own team memberships, and refuses to pull private images from other organizations.

warning

Quay refuses the authorization unless the account is a direct member of an admin team (e.g., owners) of the organization that owns the OAuth Application. This applies to global read-only superusers too.

Existing organization installations

Red Hat Quay installations used to cover a single organization. New installations cover a whole instance, and your existing organization installations keep working as before.

If you install an instance where some organizations already have their own installation, they stay on it: the new instance installation skips them and monitors only the other organizations.

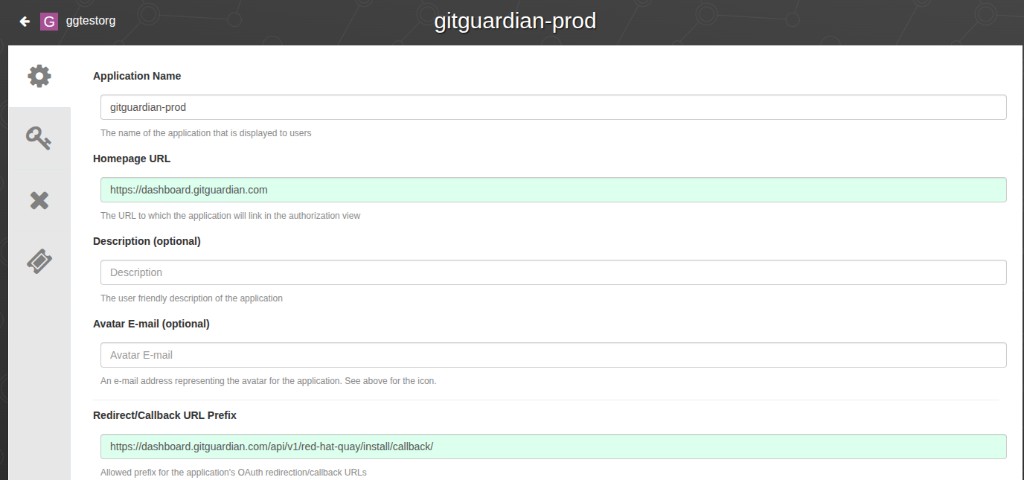

Step 1: Create an OAuth Application in Quay

1. Log in to your Red Hat Quay instance (quay.io or your self-hosted Quay)
2. Navigate to an Organization you administer and go to Applications (under Organization Settings)
3. Click Create New Application
4. Give it a name (e.g., GitGuardian)
5. After creation, click on the application to edit it
6. Set the Homepage URL to your GitGuardian dashboard URL (e.g., https://dashboard.gitguardian.com)
7. Set the Redirect/Callback URL Prefix to:

   https://dashboard.gitguardian.com/api/v1/red-hat-quay-v2/install/callback/

   The GitGuardian install form shows the exact URL for your workspace.
8. Save the application and note the Client ID and Client Secret

warning

An OAuth Application created before may still use /api/v1/red-hat-quay/install/callback/ as its prefix. Update it to the URL above before installing or re-authorizing: Quay refuses to redirect to any other URL.

Step 2: Connect Red Hat Quay to GitGuardian

Sign in to Red Hat Quay in your browser first, with the account whose organizations you want to monitor (a global read-only superuser to monitor the whole instance). This account must be a direct member of an admin team of the organization that owns the OAuth Application, even if it is a superuser. Otherwise, Quay shows an error page instead of the authorization page.

1. In the GitGuardian platform, navigate to the Sources integration page

2. Click Install next to Red Hat Quay in the Container registries section

3. On the Red Hat Quay integration page, the installation form opens. If you already have installations, click Install to add another instance.

4. Type your Instance URL, without any path (e.g., https://quay.io or https://quay.example.com)

5. Paste the OAuth Client ID from the OAuth Application you created

6. Paste the OAuth Client Secret from the OAuth Application you created

7. Tick I am signed in to Red Hat Quay in this browser

8. Click Authorize

9. In the Customize the monitored perimeter modal, choose what to monitor and click Ok, got it!:

   • Monitor specific Red Hat Quay repositories (Recommended)
     • No repositories are monitored by default, you will have to select them manually.
     • Newly created repositories will not be monitored by default. You can adjust this setting at any time.
   • Monitor the entire Red Hat Quay instance
     • All repositories are monitored by default with a full historical scan automatically triggered.
     • Newly created repositories will be monitored by default. You can adjust this setting at any time.

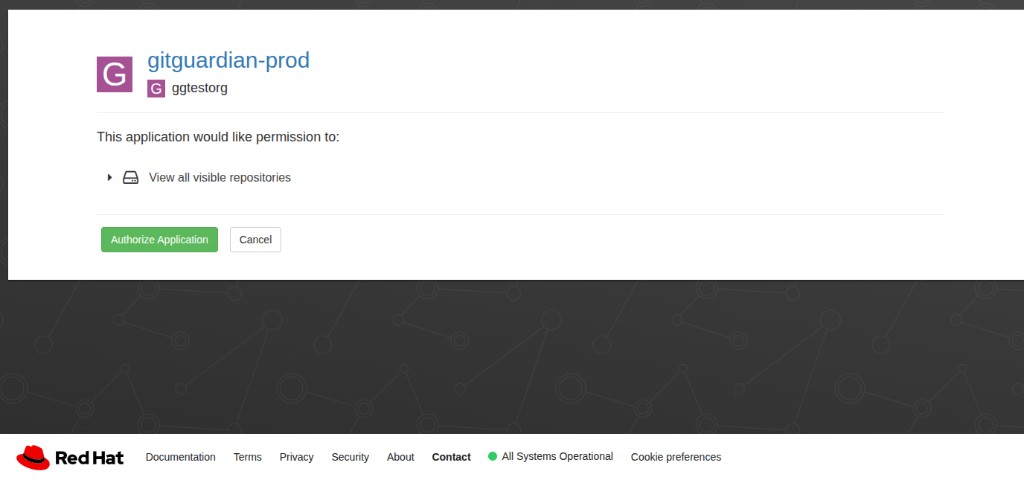

10. Quay asks you to authorize the application, with the View all visible repositories and Read User Information permissions. Click Authorize Application: Quay redirects you back to GitGuardian.



That's it! Your Red Hat Quay instance is now installed, and GitGuardian is monitoring all container images of your selected repositories for secrets.

Customize your monitored perimeter

To customize the monitored repositories, navigate to your Red Hat Quay settings.

1. In the Sources table, select the repositories to include or exclude
2. Click Monitor or Unmonitor

note

Repositories are grouped by organization, then by namespace: team/app/api sits in the team > app folder. If you move a repository to another namespace in Quay, GitGuardian sees it as a new source. The old source is removed from your perimeter but keeps its incidents.

Automatic repository monitoring

You can enable or disable the automatic addition of newly created repositories to your monitored perimeter with the Automatically monitor new repositories toggle in your Red Hat Quay settings.

Troubleshoot an installation

The Installations table in your Red Hat Quay settings shows the Status of each installation. When an installation is unhealthy, click Troubleshoot to see the cause, then:

• Click Check again for temporary issues, such as an unreachable instance or GitGuardian Bridge, rate limiting, or a server error
• Authorize GitGuardian again when Quay refuses its token, for example after the OAuth Application was deleted, or when the token no longer sees any organization. Enter the OAuth Client ID and OAuth Client Secret, tick I am signed in to Red Hat Quay in this browser, and click Authorize. For an organization installation, the form shows its Namespace URL instead of the Instance URL. Make sure the application uses the callback URL above first.

A superuser installation misses some organizations

If you authorized GitGuardian with a superuser to monitor the whole instance, but the Sources table only shows the organizations that superuser is a team member of, it is a regular superuser and not a global read-only superuser. The installation stays healthy, so its Status shows nothing. To monitor every organization:

1. Add the account to GLOBAL_READONLY_SUPER_USERS in Quay's config.yaml (or make it match LDAP_GLOBAL_READONLY_SUPERUSER_FILTER), then restart Quay
2. A healthy installation can't be authorized again: uninstall the instance in GitGuardian, then install it again, signed in to Quay with that account. Your incidents are kept.

Managing your integration

Monitoring health and Maintenance

If you need to modify your integration settings or troubleshoot connectivity issues, access the management interface through Sources integration.

Uninstalling the integration

While our goal is to help you maintain comprehensive security coverage, you may uninstall the integration whenever necessary:

1. Navigate to Sources integration
2. Click Edit next to the integration name
3. Click Configure
4. Click the delete icon next to your resource
5. Confirm the removal

Note: Removing the integration preserves your incident history, but stops future scanning and presence checks for the integrations that support it.

Excluded paths

GitGuardian automatically excludes files from scanning if their paths contain any of these regular expressions:

/__pypackages__/
/\.venv/
/\.tox/
/site-packages/
/venv/
distutils/command/register\.py
python.*/awscli/examples/
python.*/dulwich/(tests|contrib/test_)
python.*/hgext/bugzilla\.py
python.*/mercurial/util\.py
python.*/test/certdata/
python.*/urllib/request\.py
python.*/pygments/lexers/
/cryptography.+/tests/.+(fixtures|test)_.+\.py
/python.+pygpgme.+/tests/
botocore/data/.+/(examples|service)-.+\.json
usr(/local)?/lib/python.+/dist-packages
/libevent.+/info/test/test/
/conda-.+-py.+/info/test/tests.+/test_.+\.py
/python[^/]+/test/
/man/man5/kdc\.conf\.5
erlang.*(inets|ssl).*/examples/
/gems/.*httpclient.*/(test|sample)/
/gems/.*faraday.*/
/vendor/bundle/
/\.gem/
ruby-[^/]+/test/openssl/
/(g|G)o/src/cmd/go/internal/.*_test\.go
/(g|G)o/src/cmd/go/internal/.*/testdata/
/(g|G)o/src/cmd/go/testdata/
/(g|G)o/src/crypto/x509/platform_root_key\.pem
/(G|g)o/src/crypto/(tls|x509)/.*_test\.go
/(g|G)o/src/net/(url|http)/.*_test\.go
src/github.com/DataDog/datadog-agent/.*test.*\.go
google/internal/.*_test\.go
golang.org.*oauth2@.*/.*\.go
/flutter/.*/packages/flutter_tools/test/data/
/flutter/.*/examples/image_list/lib
/\.pub-cache
etc/ssl/private/ssl-cert-snakeoil\.key
perl.*Cwd\.pm
ansible/.*/tests/(integration|unit)/
ansible/.*/test/awx
ansible/collections/ansible_collections/.*/plugins/
/curl/.*/(tests|docs|lib/url\.c)
/doc/wget.+/NEWS
dist/awscli/examples/
usr(/local)?/lib/aws-cli/examples/
/google-cloud-sdk/(lib|platform)/
\.git/modules/third[-_]?party/
\.git/modules/external/
/\.npm/_cacache
/node_modules/
/\.parcel-cache/
/\.yarn/cache/
/\.m2/
/\.ivy2/cache/
/\.mix/
/\.hex/
/composer/cache/
/\.nuget/packages/
/libgpg-error/errorref\.txt
/Homebrew/Library/Taps/
/tcl[^/]+/http-.+\.tm
/tcl[^/]+/[^/]+/http-.+\.tm
usr/share/lua/[^/]+/posix/init\.lua
openssl/openssl-[^/]+/test/recipes/
usr/share/doc/libssl-doc/demos/
boringssl/src/third_party/[^/]+test[^/]+/[^/]+_test\.json

Additional Self-Hosted considerations

For GitGuardian Self-Hosted instances, scan frequency can be configured in the Admin Area:

• Time interval unit: seconds
• Default value: 86400 (1 day)
• Minimum value: 1800 (30 minutes)

Privacy and compliance

Data handling

GitGuardian processes your data solely to detect exposed secrets:

• Read-only access: We never require write access unless scoped to creating webhooks to receive and process real-time events
• Minimal data retention: We store only data and metadata necessary for incident management
• Encryption: All data in transit and at rest is encrypted
• Compliance: We follow the same data protection standards as our other integrations

Regional considerations

GitGuardian hosts its services in two AWS regions: eu-central-1 (Frankfurt) and us-west-2 (Oregon). Ensure your GitGuardian deployment region aligns with your data residency requirements. Contact support if you need guidance on compliance with local regulations.

User notification

Country-specific laws and regulations may require you to inform your users that your repositories are being scanned for secrets. Here is a suggestion for a message you may want to use:

As part of our internal information security process, the company scans its repositories for potential secrets leaks using GitGuardian. All data collected will be processed for the purpose of detecting potential leaks. To find out more about how we manage your personal data and to exercise your rights, please refer to our employee/partner privacy notice.

Please note that only repositories relating to the company's activity and business may be monitored and that users shall refrain from sharing personal or sensitive data not relevant to the repository's purpose.
